Electrical Heating Defrost Unit Cooler For Cold Room With Aluminum Fin And Copper Pipe

Shandong Ourfuture Energy Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Electrical Heating Defrost Unit Cooler For Cold Room With Aluminum Fin And Copper Pipe

Brand Name : Ourfuture

Model Number : IVF350-0704E

Certification : CE, ISO9001:2008, 3C

Place of Origin : China

MOQ : 1 unit

Price : USD 10000 Per Unit

Payment Terms : L/C, T/T

Supply Ability : 1000 units per month

Delivery Time : 20 days

Packaging Details : Plastic film with plywood case

Fan brand : Ebmpapst, Ziehl;Abegg, Dunli, etc.

Refrigerant : R404a, R507a, R407c, R22, CO2

Voltage : 380/3Phase/50Hz, 460V/3Phase/60Hz

Use : Cold room, refrigeration, supermarket, pharmacy, meat produce

Key components : Danfoss, Siemens, Ebmpapst

Contact Now

Unit cooler apperance
Shape with flexible and changeable, drawing, blowing, forward air flow, air flow up air flow down, precision meet the actual needs of different occasions, the cold quantity to the location of the actual needs, improve efficiency.

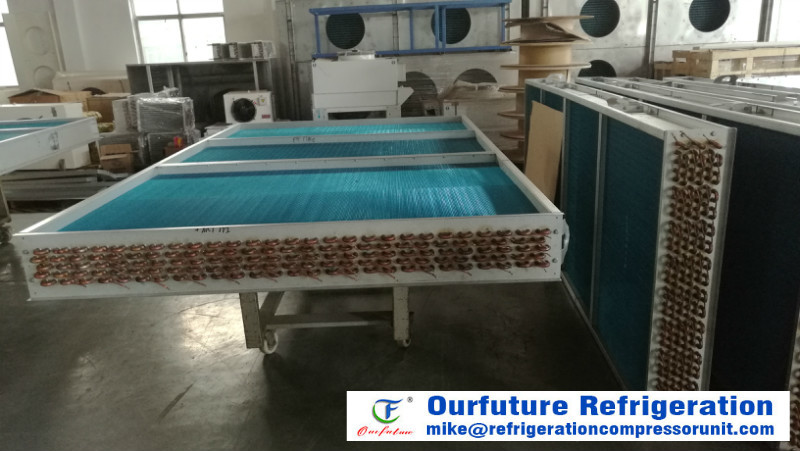

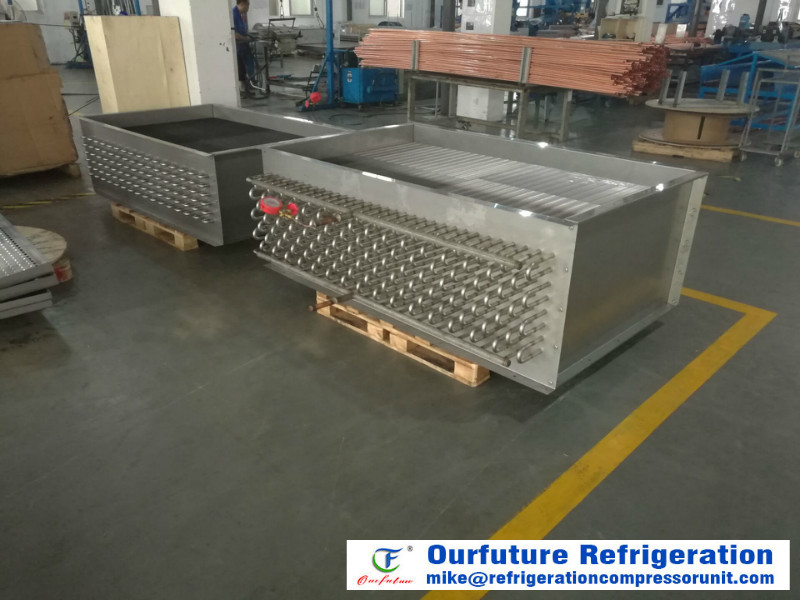

Cooler coil
Tube pattern aligned 50*50mm, special copper tubes OD15.88mm. Also use stainless steel tube aluminium fin spacing 4, 7, 10, 12, 14 and 16mm. Fin and copper interface is more sufficient, thermal resistance smaller, more efficient, can also provide copper fin, stainless steel fin and some variety of anti-corrosion treatment scheme.

Casing
Sizes 400-450: AlMg3, poder coated RAL9010, fan 500-630-800 used galvanized steel powder coated RAL 9010.

Fans
Low noise axial fans, with maintenance free motors in protection class IP54. Internal motor protection with thermo contacts. With precise design, a leading solar or lunar halo forming mould processing, air volume is larger and more efficient, longer air throw.

Heater
The international famous brand, the material of heating tube of SUS304 stainless steel, surface heat load is less than 2.0 W/cm3, longer life.

Model Diameter of fan No. of fans Capacity R404A SC2 Capacity R404A SC3 Exchange surface Air throw
kW kW m
IVF140-0704E 400 1 2.8 2.1 17 11
IVF140-0706E 1 4.1 3.1 25 10
IVF240-0704E 2 6.1 4.6 34 12
IVF240-0706E 2 8.3 6.3 51 11
IVF340-0704E 3 9.3 7.1 51 13
IVF340-0706E 3 12.5 9.5 76 12
IVF440-0704E 4 12.2 9.3 68 14
IVF440-0706E 4 16.7 12.6 102 13
IVF145-0704E 450 1 5.8 4.8 30 15
IVF145-0706E 1 8.5 6.6 46 14
IVF245-0704E 2 12.5 10.1 61 17
IVF245-0706E 2 17.3 13.5 91 16
IVF345-0704E 3 17.5 14.4 91 18
IVF345-0706E 3 26.0 20.4 137 17
IVF445-0704E 4 25.7 20.4 122 20
IVF445-0706E 4 35.1 27.7 183 19
IVF150-0704E 500 1 7.4 5.9 36 20
IVF150-0706E 1 10.1 7.9 53 19
IVF250-0704E 2 14.9 11.9 71 22
IVF250-0706E 2 20.4 15.9 107 21
IVF350-0704E 3 21.8 16.9 107 23
IVF350-0706E 3 30.2 23.6 160 22
IVF450-0704E 4 29.2 23.4 142 24
IVF450-0706E 4 39.8 31.6 213 23
IVF163-0704E 630 1 15.4 12.9 81 33
IVF163-0706E 1 22.6 17.6 122 32
IVF263-0704E 2 32.3 25.7 162 36
IVF263-0706E 2 45.2 35.8 244 35
IVF363-0704E 3 48.6 38.8 244 39
IVF363-0706E 3 68.0 53.9 366 38
IVF463-0704E 4 64.9 51.8 325 40
IVF463-0706E 4 90.8 72.1 487 39
IVF180-0706E 800 1 31.2 24.1 162 34
IVF180-0708E 1 37.3 29.5 217 32
IVF280-0706E 2 49.6 49.6 325 37
IVF280-0708E 2 74.9 59.4 433 35
IVF380-0706E 3 94.2 73.3 487 39
IVF380-0708E 3 111.7 88.1 650 37

Electrical Heating Defrost Unit Cooler For Cold Room With Aluminum Fin And Copper PipeElectrical Heating Defrost Unit Cooler For Cold Room With Aluminum Fin And Copper Pipe
